Low Frequency 125/134,2 kHz Readers
HTRM 301/310/321
Short/Midrange Reader with anticollision, Reading Range up to 40 cm, supports Hitag, EM, ISO11784/85, ISO 14223, ISO 18000-2.
HTRD 803EX
Focused on the demand of gas cylinder management systems freaquent developed a highly sophisticated Reader Device for EX II 2GD Ex d IIB+H2 applications. With integrated Multiplexer for up to 4 antennas, fastest detection speed for fastest conveyor speed and PoE+ and Ethernet connectivity this reader and antenna system provides best convenience at highest security.
HTRM 401
Very robust and stable Proximity Reader Module for Hitag1, 2 and S.
HTRM 803/903
Long Reader with anticollision, Antenna fine tuning features, Reading Range up to 100 cm, supports Hitag, EM, ISO11784/85, ISO 14223, ISO 18000-2, Big variety of extension boards.
Low Frequency 125/134,2 kHz Antennas
HTAN 60
Coil Antenna Module – Diameter 60 mm – Available for 125 or 134.2 kHz
HTAN 17.5
PCB Antenna Module – Size 17.5 x 17.5 cm – Available for 125 or 134.2 kHz
HTAN 18×25
PCB Antenna Module – Size 18 x 25 cm – Available for 125 or 134.2 kHz
HTAN 70×50
Flat Flex Antenna – Size 70 x 50 cm – Available for 125 or 134.2 kHz
HTAN 18x25EX
ATEX PCB Antenna Molded – Size 18 x 25 cm – Available for 125 or 134.2 kHz
Customized Antennas
Variable Sizes and Types – Available for 125 or 134.2 kHz
High Frequency 13.56 MHz Readers

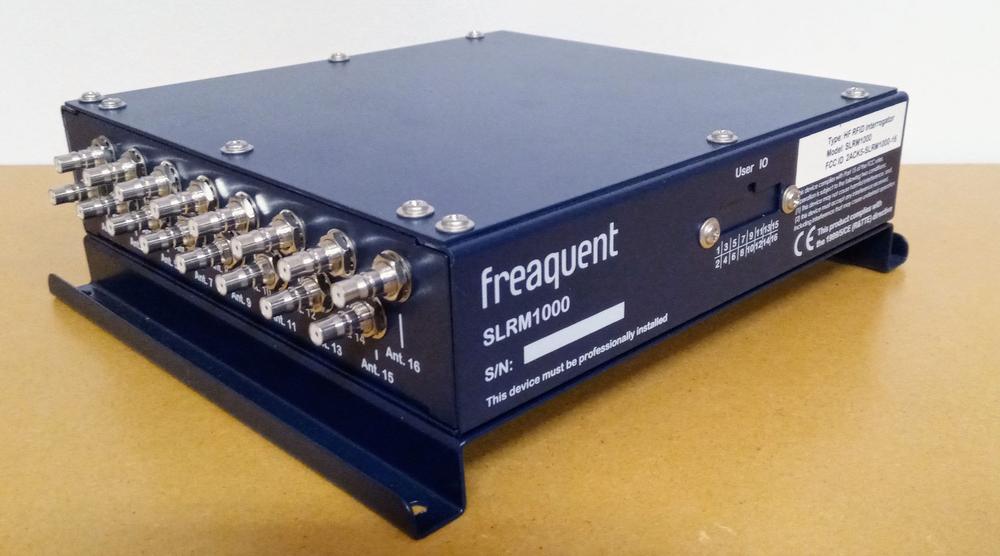

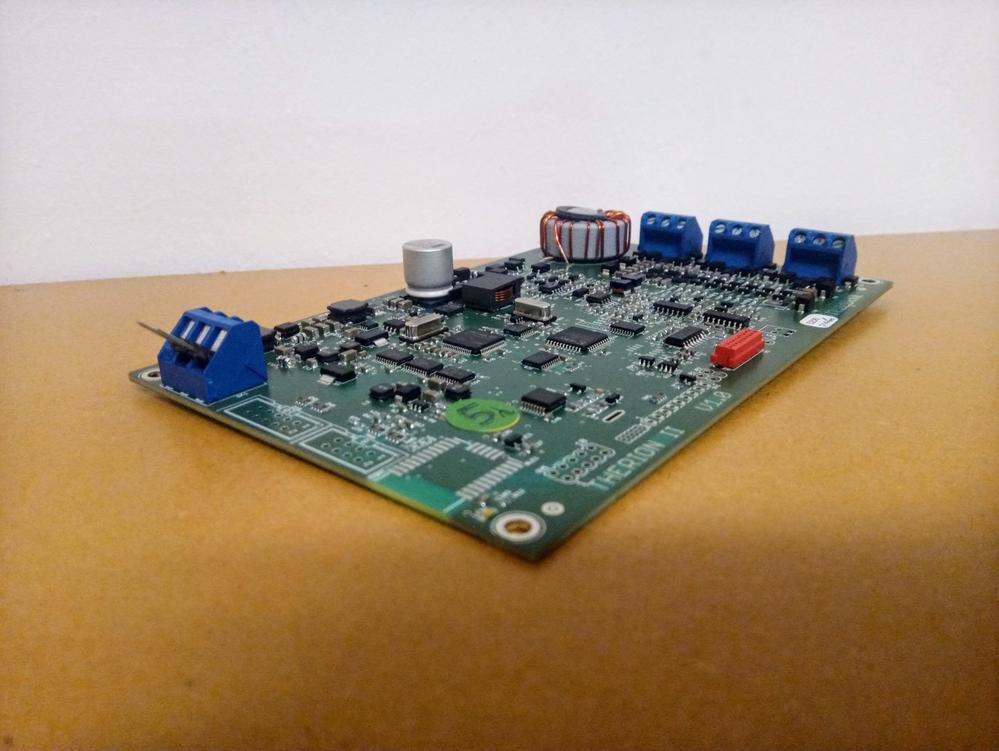

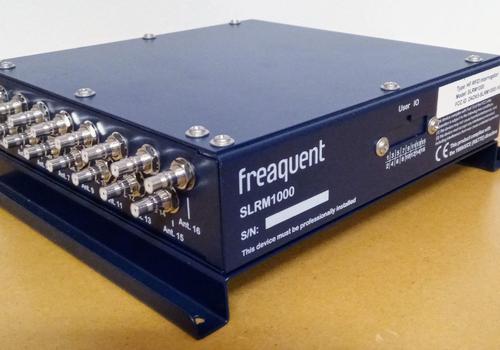

HF RFID Interrogator SLRM1000
This new HF reader system was designed to fully utilize the advantages of the ISO18000-3mode3 standard such as fast anti-collision and 433 kHz downlink data rates.
ISO15693 and ISO18000-3mode3 compliant

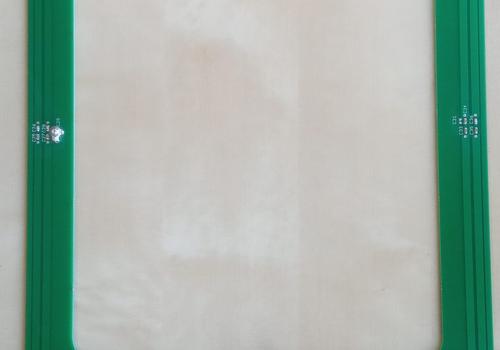

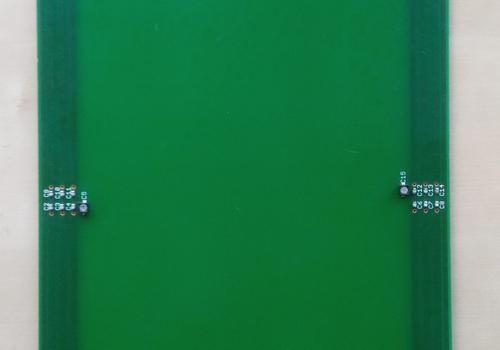

Antennas for the SLRM1000
Following PCB-antennas have already been designed:
1D Antennas: Designed in order to read transponders in z-orientation.

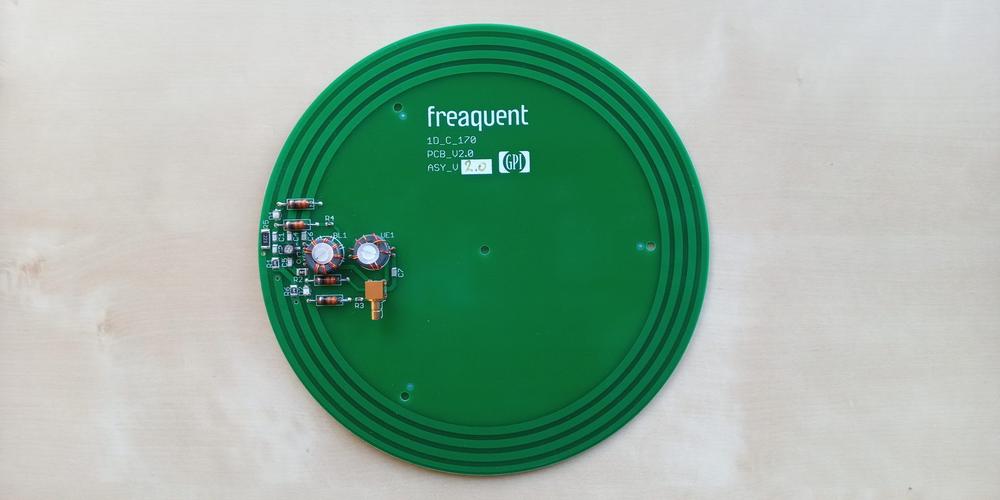

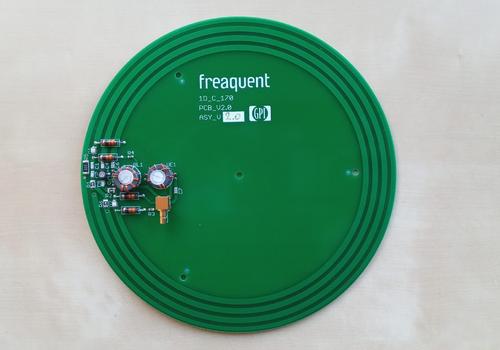

- SLAN 1D_C_170

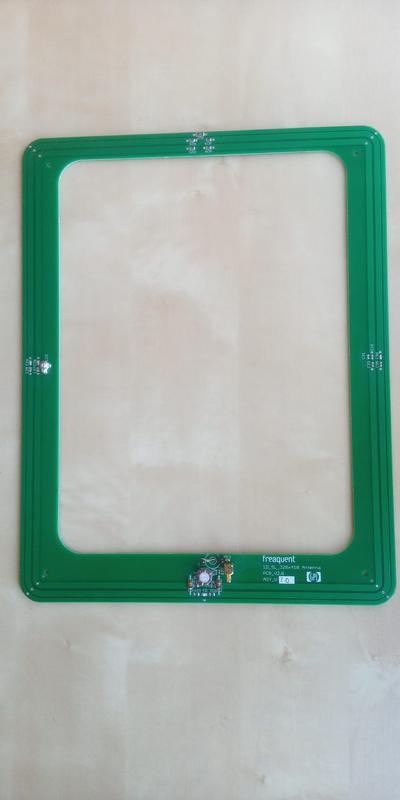

- SLAN 1D_SL_320x410

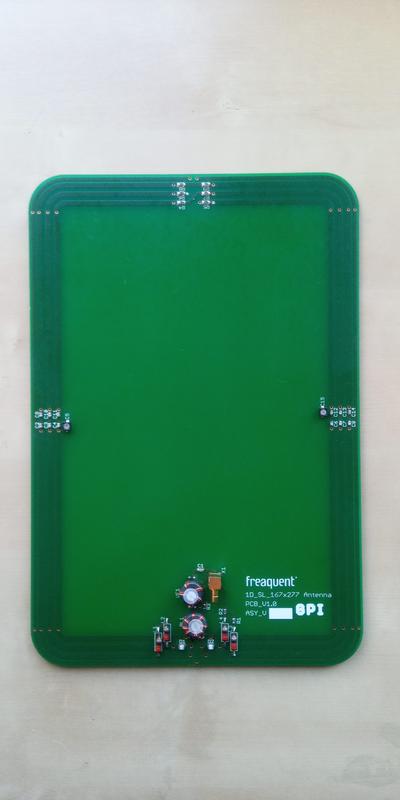

- SLAN 1D_SL_167x277
2D Antennas: Designed in order to read transponders in x- and z-orientation.

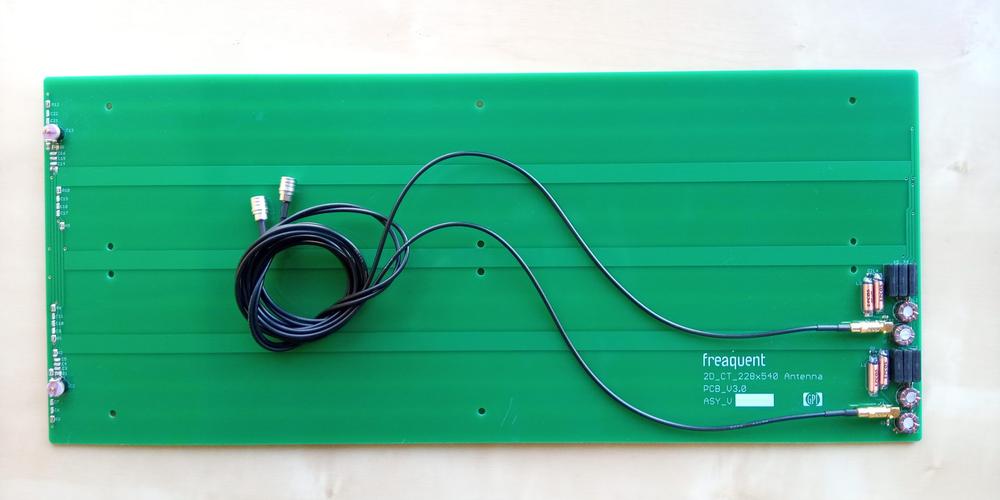

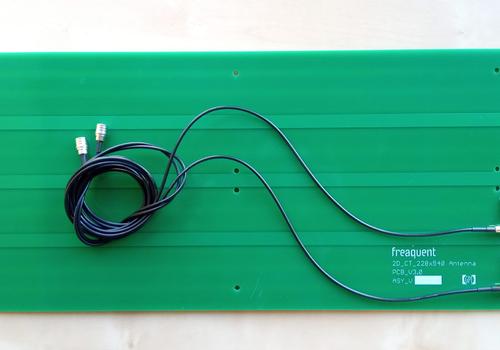

- SLAN 2D_SL_228x540

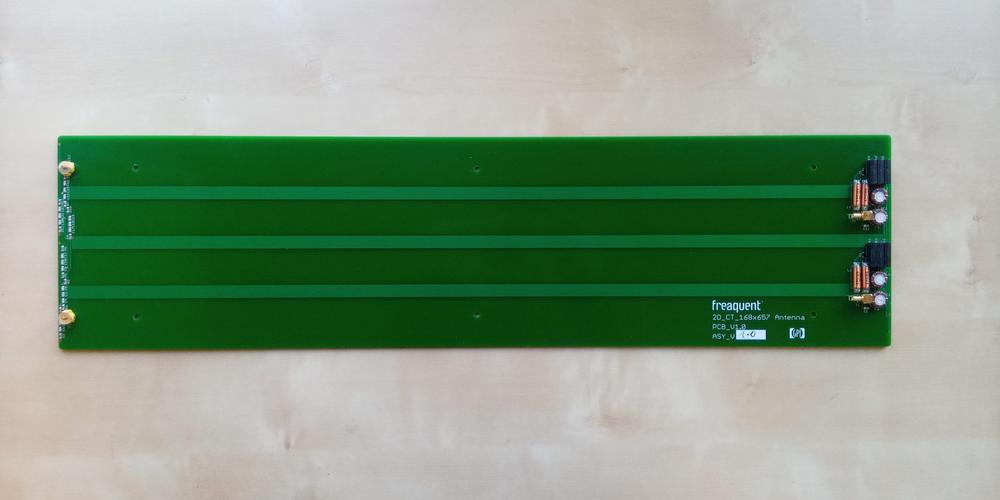

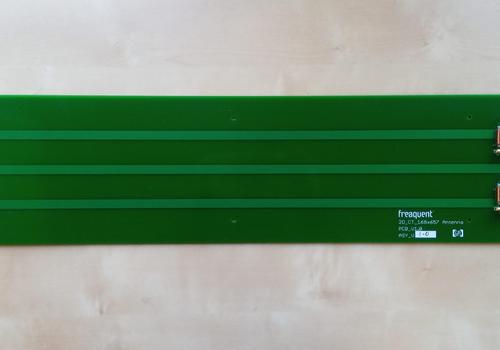

- SLAN 2D_CT_168x657

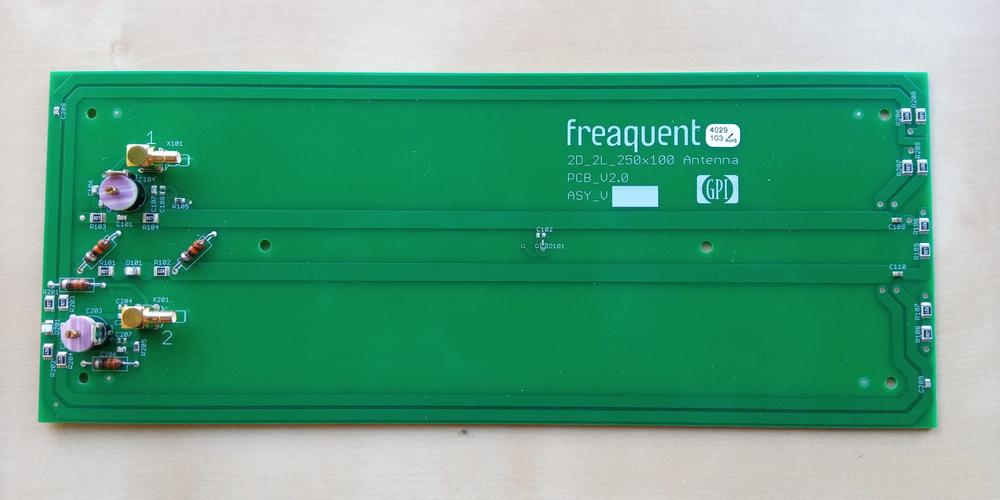

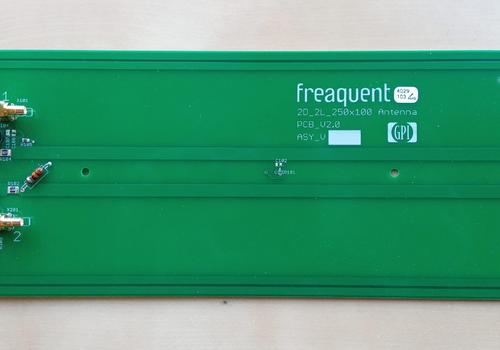

- SLAN 2D_2L_250x100

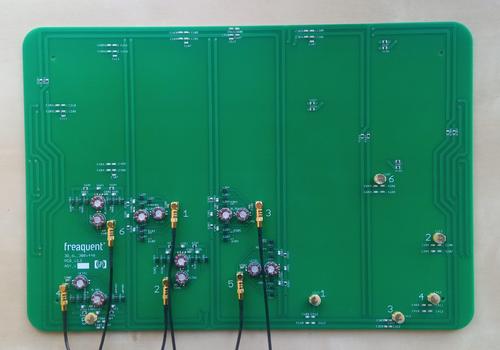

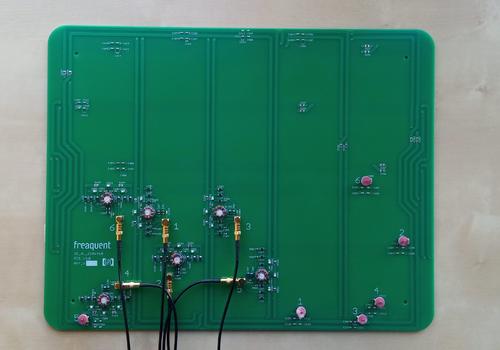

3D Antennas: Designed in order to read transponders regardless of their orientation.

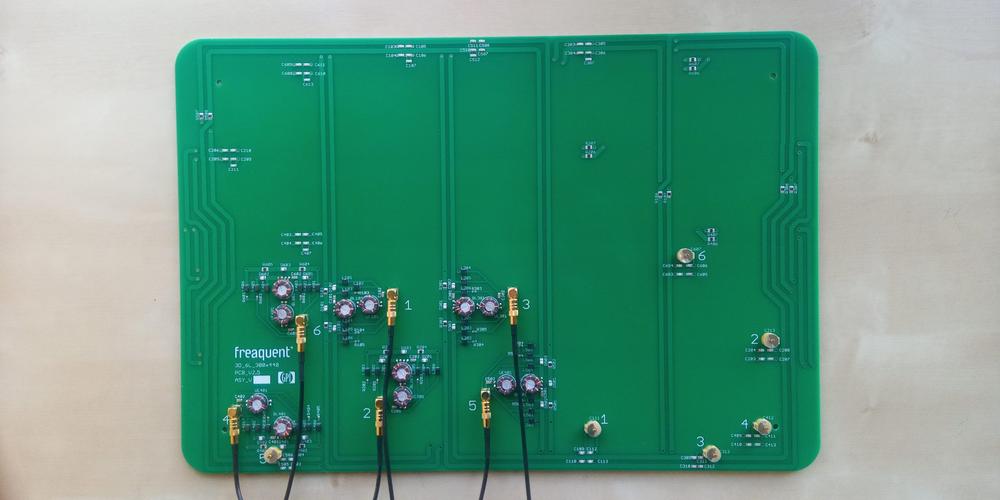

- SLAN 3D_6L_300x440
- SLAN 3D_6L_320x410

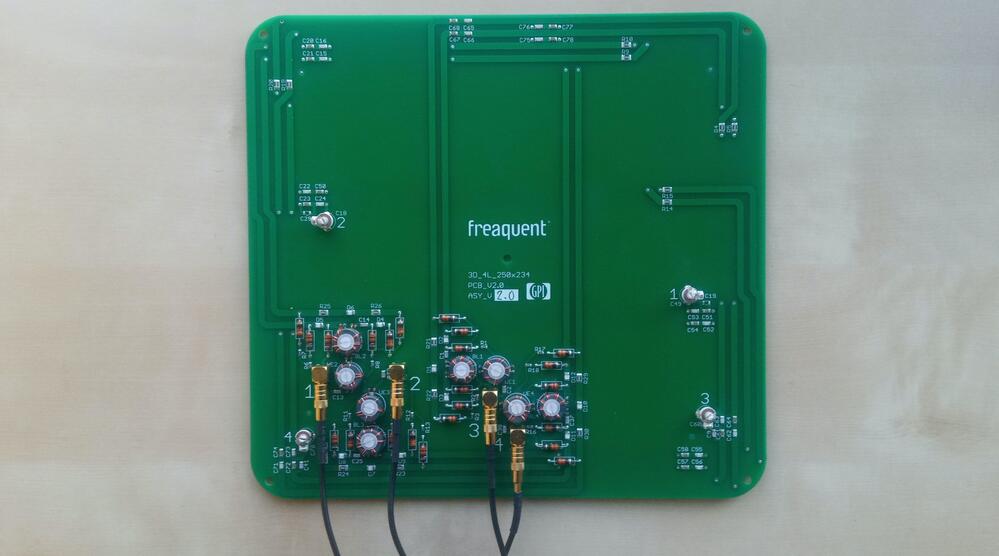

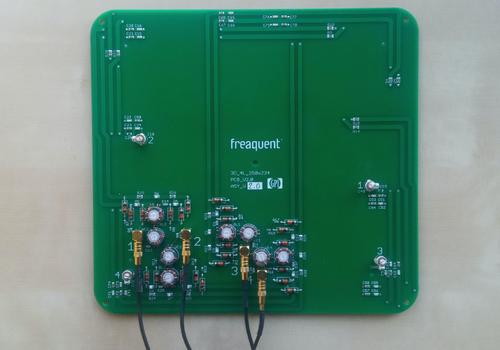

- SLAN 3D_4L_250x234
The figures at the end of the order number indicate the outline dimensions.
Different dimensions of PCB-antennas, big single loop antennas and multiple antennas with a tunnel-like geometry can be designed and delivered on demand.
